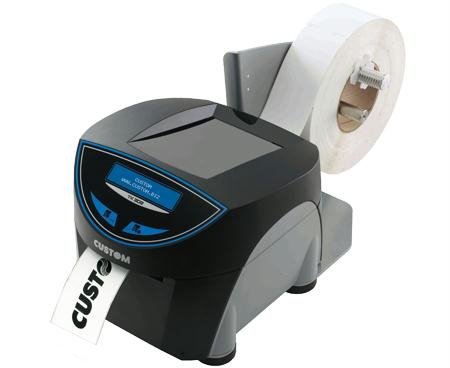

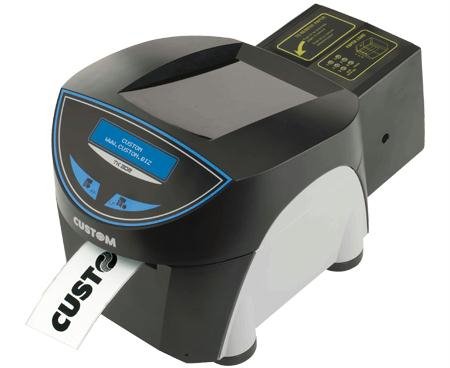

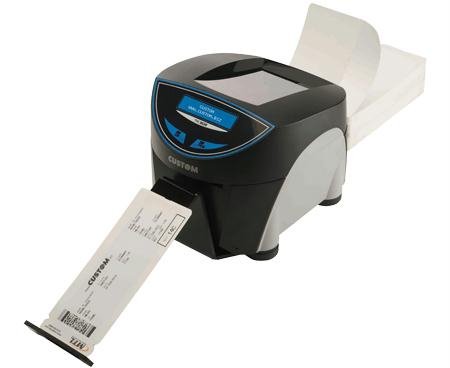

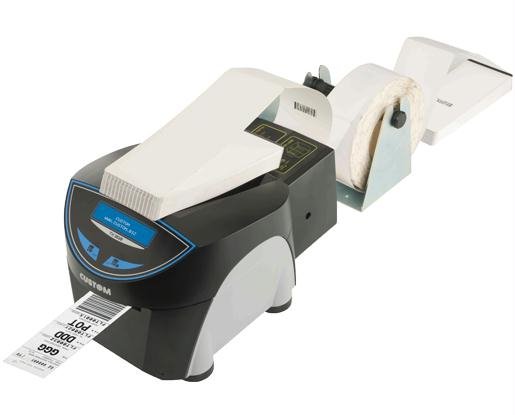

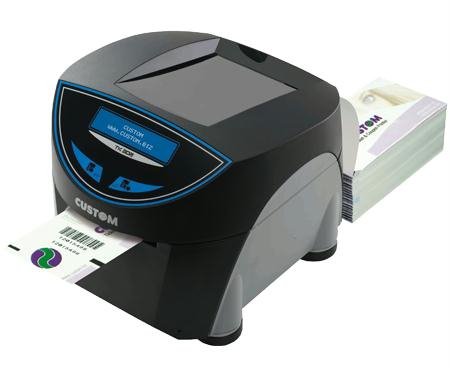

TK302 isthe most advanced ticket printer available on the market for applications that require durability and the latest technologies. The printer canbe delivered with an optional barcode scanner to validate tickets with pre-printed barcodes and with several RFID modules for HF and UHF. The optional barcode scanner makes the TK302 suitable for all ticketing applications where fraud risks are very high, as it improves access controls. The barcode scanner is positioned inside the printer for a secure and real time scanning process. TK302 isextremely fast: up to 200mm/s ticket printing speed. It prints different paper widths, from 20 to 82.5mm, and can be easily adjusted by the user. Ticket weight (in grams): from 80 to 255 g/m². TK302 has an Ethernet interface with Embedded Web Server, which allows you to remotely and fully control the printer and perform real time diagnostics. The embedded client mail system is capable ofsending out emails automatically, to request support or simply a paper change.
  • Ethernet web server for remote printing and configuration
  • Printing speed up to 200 mm/s
  • Version with high printing resolution - 300 DPI (TK303)- available
  • Different ticket widths: from 20 to 82.5 mm
  • Ticket weight (in grams): from 80 to 255 g/m²
  • Embedded display on 2 lines
  • Automatic and robust cutter for 2 million cuts
  • 32 bit powerful processor, 266 MHz
  • RAM up to 32 MB, on 32 MB flash memory
  • SD expansion slot for an additional 2 GB memory
  • COM/USB virtual SW emulator


  • 1D and 2D barcode printing: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QR CODE
  • RS232 + USB + Ethernet interface
  • Sensors: fully adjustable lower and upper optical sensor, to suit any ticket width. Ticket presence sensor
  • The web server allows you to upload and download fonts and logos from the Internet
  • Using the 2 Gb SD or the 8 Mb mass storage USB memory, you can easily upload True Font characters and logos with a simple drag and drop command, and you can the install them directly
  • The external power supply can be removed to facilitate installation
  • Auto-installing driver for Win XP/Vista/7, OPOS in Java e .NET and Linux driver
