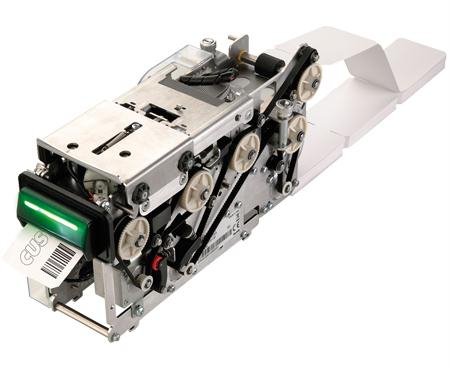

PP54

PARKING SYSTEM
The most innovative PARKING SYSTEM engine
Ideal for any Parking Systems with Bar Code tickets
  • Iso54 ticket HD full graphic printing capability (300Dpi)
  • Barcode reading to accept and validate the ticket
  • Modular system (ticket separator and printing/reading unit)
  • Up to 2 coupons management
  • Ticket ejecting
  • Ticket retracting
  • Ticket collecting
  • Full Ticket scanning capability
  • RGB led on paper mouth

HIGHLIGHTS

Combines in a unique device:

ENTRANCE:
- Printing, reading and issuing tickets in less than 1 second

PAYMENT:
- Receipt printing
- Handles up to 2 coupons

EXIT:

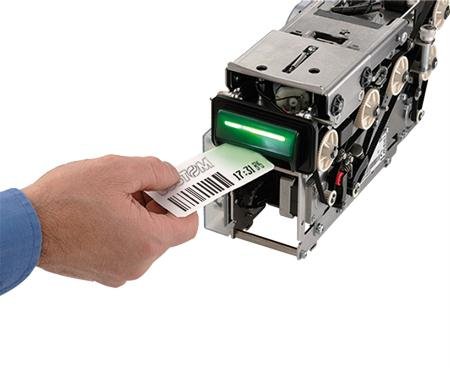

- Reading & Validating ticket
- Capturing & Ejecting tickets

EXCLUSIVE FEATURES

HEAVY DUTY motors for outdoor use; Operating T°: -20°C > +60°C
EASY MAINTENANCE (thermal head, control board, paper loading module, bezel, ..)
Standard ISO Ticket Management: In/Out reading & printing module system with detection of wrong ticket insertion

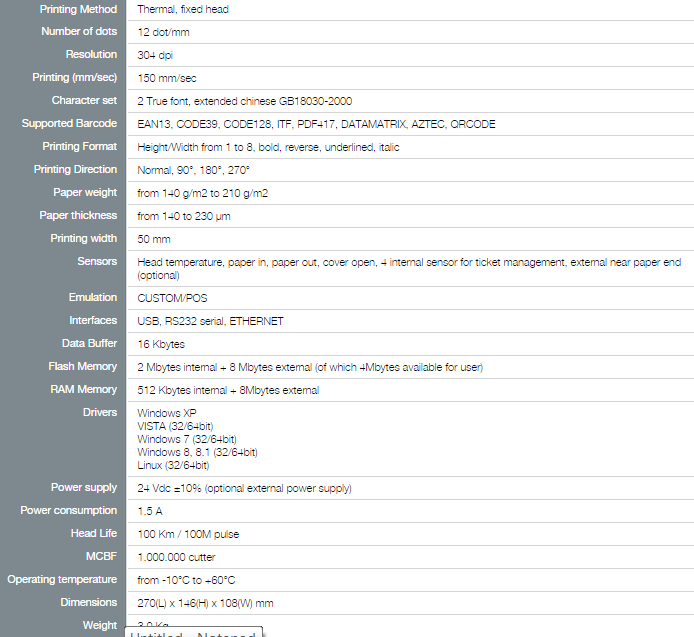

  • Printing speed: less than 1 second
  • 1D & 2D Barcode Print & Read capability, Aztec, DataMatrix, PDF417, QRCODE
  • Paper weight range: 140 > 210 gr/m2
  • RS232 + Ethernet; USB as option (small board addon)
  • ALL International Fonts
  • Zero Power Management (solar & battery app)
  • Power supply: 24Vdc
  • RGB LED paper mouth
  • Windows and Linux Drivers
  • SDK Development Kit

FOCUS ON

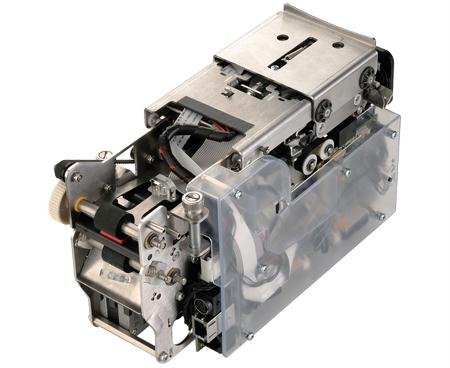

The system is composed of 2 modules:

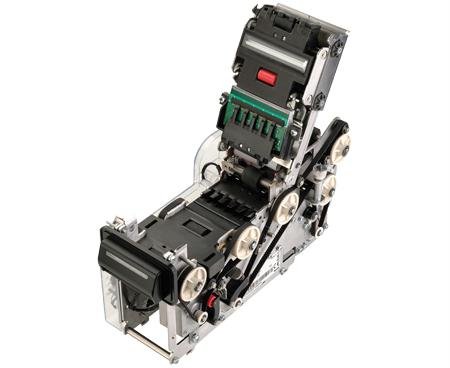

A) Ticket module (printing and handling)
- To print
- To scan a ticket (thermal side).
Not-thermal side version, as option.
- 2 ticket-capture ways (bottom & rear)

B) Paper loading module
- To separate & load a ticket
- Available:
1 feeder with buster. Only Fan Fold
1 feeder with cutter. Fan Fold & Roll
2 feeder with buster. Only Fan Fold
