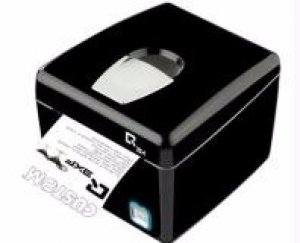

FISCAL PRINTER
With its elegant and trendy look, this printer stands out also for its performance and original design. Colours, polished plastic and fine chromed surfaces are perfectly matched to meet the needs of the most demanding and trendy shops. Technical features, performance and quality allow this fiscal printer to be positioned at the top of the retail markets, in franchising networks and in the large scale retail trade.
Ethernet, Bluetooth and Wi-Fi interfaces available.
HIGHLIGHTS
- Paper width: 80mm/roll diameter: 80 mm
- RS232+USB / USB+Ethernet (Wi-Fi and Bluetooth available)
- User-friendly paper roll replacement system
- Auto-cutter (with partial or total cut)
- Approved for invoice printing on receipt
- Approved for negative receipts (returns)
- Electronic Journal on SD
- Customizable receipt graphics
- Available in polished white and polished black
- Front receipt outfeed
Softwrare
Fiscal RX Configurator
Auto-installing software tool that allows you to fully programme the printer saving and restoring data via PC, and to also customize the keyboard and transfer graphic logos. Can be used with Windows Operating System.
Technical Features
| Processor |
100 MHz |
|
|
|
|
| Electronic Journal |
SD electronic journal up to 2.000.000 lines (approx. 500 rolls) |
|
|
|
|
| Keyboard |
External alphanumeric keyboard K35-USB |
|
|
|
|
| Display |
External double-sided LCD display 2x20 characters |
|
|
|
|
| Paper width |
80 mm |
|
|
|
|
| Printing speed |
160 (mm/sec) |
|
|
|
|
| Interfaces |
Serial version: 2 serial ports, 2 USB ports and 1 cash drawer portEthernet version: 1 serial port, 2 USB port, 1 Ethernet port and 1 cash drawer port |
|
|
|
|
| Tax deductible receipt |
Yes |
|
|
|
|
| PLUs |
20 programmable PLUsPLU groups for aggregate statistics |
|
|
|
|
| Items |
10 items in internal memory |
|
|
|
|
| Payment types |
30 customisable types of payment |
|
|
|
|
| Price Modifiers |
8 price modifiers (discounts and surcharges) |
|
|
|
|
| VAT rates |
10 |
|
|
|
|
| Reports |
Fiscal and financial |
|
|
|
|
| Graphics |
Prints high quality logos and coupon graphics; 1D and 2D barcode printing (QRCODE) |
|
|
|
|
| Protocols |
CUSTOM, XON/XOFF, UAP |
|
|
|
|
| Drivers |
Windows, OPOS , JavaPOS, POS.net |
|
|
|
|
| Dimensions |
150 (L) x 117 (H) x 140 (W) mm |
|
|
|
|
| Resolution |
203dpi (8 dots/mm) |
|
|
|
|
| Paper roll dimension |
max Ø 80 mm |
|
|
|
|
| Medium consumption |
2.2 A (12.5% printing rate) |
|
|
|
|
| Power supply |
24 Vdc ± 10% (external power supply) |
|
|
|
|
| MTBF |
11,000 hours (electronic board) (workload according to fiscal standards) |
|
|
|
|
| Weight |
920 g (without paper roll) |
