FISCAL PRINTER

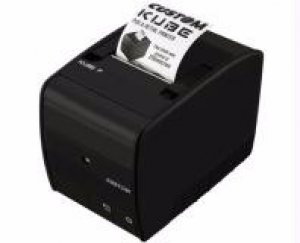

KUBE F combines sturdiness, high reliability software and hardware (also thanks to the new autocutter with a capacity of over 2,000,000 cuts) and is perfectly compatible with all applications available on the market KubeF can be upgraded to the ECR version, acquiring all the functions typical of a high-range cash register. In the ECR configuration, KubeF can be connected to evolved keyboards with 24,35 and 60 keys and can come equipped with different displays from the wide Custom's range, depending on the needs of the Point of Sale. Approved for direct invoicing on the receipt, KubeF is compatible with all international PC connection standards, such as JavaPOS and POS.NET, a characteristic that is ever more requested as it is linked to recent retail management software applications.
HIGHLIGHTS
- Paper width: 80/82.5mm/roll diameter: 90mm
- RS232
- User-friendly system for paper roll replacement
- Automatic slip / receipt cutting system
- Approved for invoice printing on fiscal receipt
- Electronic Journal on MultiMediaCard/SD
- Customizable receipt graphics
- Can be used with a standard PC keyboard
Focus On
-
FP MODE
- Daily closeout report slip
- Tax log reading
- Connection to EFT terminals
- Approved for invoice printing on receipt
ECR mode
- Table management with order printers, table order and bill splitting.
- Management of meal tickets with re-invoicing to the issuers
- Approved for direct invoice issuing
Technical Features
|
FP MODALITY |
ECR MODALITY |
|
|
Electronic Journal |
MMC of 2Ml linesReading of electronic journal |
|
|
|
|
Keyboard |
|
73 or 60 keys programmable keyboards with embedded backlit LCD display 20x2 characters |
|
|
|
Paper width |
80 mm |
80 mm |
|
|
|
Printing speed |
160mm/sec |
160mm/sec |
|
|
|
Interfaces |
|
3 RS232 serials to connect to external peripherals + drawer (RJ11)+ 1 PS2 |
|
|
|
Tax deductible receipt |
|
Yes |
|
|
|
PLUs |
20PLU programmingPLU reading |
50 - free and fixed |
|
|
|
Items |
|
3000 items (PLU) |
|
|
|
Customers |
|
Management of 200 credit customers with delayed invoicing |
|
|
|
Payment types |
Mixed payments |
20 |
|
|
|
Price Modifiers |
|
10 |
|
|
|
VAT rates |
|
5 |
|
|
|
Reports |
|
Financial and statistical |
|
|
|
Graphics |
Up to 6MB for graphic logos (free height max. 640 dots) |
Heading graphic logoUp to 6MB for graphic logos (free height max. 640 dots) |
|
|
|
Scrolling Messages |
|
Promotional scrolling message on display |
|
|
|
Protocols |
CUSTOM/PCXON/XOFF |
CUSTOM/PCXON/XOFF |
|
|
|
Drivers |
JAVAPOS/POS.NET |
JAVAPOS/POS.NET |
|
|
|
Dimensions |
209mm (L)x140mm (D)x152mm (H) |
209mm (L)x140mm (D)x152mm (H) |
|
|
|
Resolution |
203 DPI (8 dots/mm) |
203 DPI (8 dots/mm) |
|
|
|
Paper roll dimension |
Ø max 90mm |
Ø max 90mm |
|
|
|
Medium consumption |
1 A (12.5% printing rate) |
1 A (12.5% printing rate) |
|
|
|
Power supply |
24 Vdc ± 10% (external power supply) |
24 Vdc ± 10% (external power supply) |
|
|
|
MTBF |
10,300 hours (electronic board)(workload according to fiscal standards) |
10,300 hours (electronic board) (workload according to fiscal standards) |
|
|
|
Weight |
2.25 Kg |
2.25 Kg |
Options
- Order printers
- KubeII-U: external printer for fiscal receipts
- EFT/POS amount exchange
