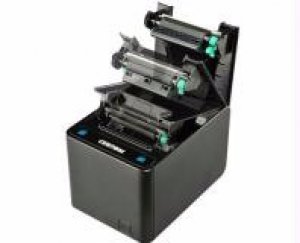

WIRELESS FISCAL PRINTER
K3F starts the third generation of Custom's fiscal products. With an ever more advanced and specialized technology, K3F not only improves speed and reliability performances, but also opens the doors to mobile communication with its Ethernet interface (standard equipment) and Wi-Fi connectivity (optional). These features have been conceived to use the product with applications designed for mobile and cloud-oriented sales. K3F has no technological limits: it can be managed via LAN or via a geographic network and it can be easily reached by any device, like tablets or smartphones with network access.
Highlights
- Wi-Fi fiscal printer
- Powerful 400MHz processor
- RS232+USB+ETHERNET
- Automatic cover opening
- Fast and powerful: 280mm/sec
- Prints high quality logos and coupon graphics
- 200 DPI resolution
- Paper width: 80mm, 60mm, adjustable (1 movable side)
- Paper thickness: from 55g to 90g
- External paper roll diameter: 100 mm max
- Auto-cutter: 2,000,000 cuts
- Printing head: 200Km
- 1D and 2D (QRCODE) barcode printing
- Paper presence, near paper end sensors
- DGFE on SD CARD
- Storage memory for logos and configuration files
- Custom protocols, XON-XOFF, UAP
Focus On
- Automatic cover opening on reaching the roll end
- Fan-fold paper management
- Easy access to parts subject to ordinary maintenance
- Cable holder system
- Feed and cover opening touch keys; ON/OFF button
- LED indicator to notify that servicing is required
- Tray connector
- Buzzer
- Vertical mounting
Software
Fiscal RX Configurator
Auto-installing software tool that allows you to fully programme the printer saving and restoring data via PC, and to also customize the keyboard and transfer graphic logos. Can be used with Windows Operating System.
Technical Features
| Processor |
400 Mhz |
|
|
|
|
| Electronic Journal |
SD card with 2,000,000 line capacity |
|
|
|
|
| Mass Storage |
DGFE on SD CARD |
|
|
|
|
| Keyboard |
External alphanumeric keyboard K35-USB |
|
|
|
|
| Display |
The whole family XD and QD; version with built-in LCD backlit display, 2x20 characters, blue background, white LEDs |
|
|
|
|
| Paper width |
80mm, 58/60mm adjustable |
|
|
|
|
| Printing speed |
280mm/sec |
|
|
|
|
| Interfaces |
RS232, USB, ETHERNET |
|
|
|
|
| Tax deductible receipt |
yes |
|
|
|
|
| PLUs |
100 programmable PLUsPLU groups for aggregate statistics |
|
|
|
|
| Payment types |
30 customizable types of payment |
|
|
|
|
| Price Modifiers |
8 price modifiers (discounts and surcharges) |
|
|
|
|
| VAT rates |
10 |
|
|
|
|
| Reports |
Fiscal and financial |
|
|
|
|
| Graphics |
Prints high quality logos and coupon graphics; 1D and 2D barcode printing (QRCODE) |
|
|
|
|
| Protocols |
CUSTOM, XON/XOFF, UAP |
|
|
|
|
| Drivers |
Windows, OPOS , JavaPOS, POS.net |
|
|
|
|
| Dimensions |
206mm (L)x148mm (D)x140mm (H) |
|
|
|
|
| Resolution |
203dpi (8 dots/mm) |
|
|
|
|
| Paper roll dimension |
max Ø 100 mm |
|
|
|
|
| Power consumption |
2.2 A (12.5% printing rate) |
|
|
|
|
| Power supply |
24 Vdc ± 10% (external power supply) |
|
|
|
|
| Weight |
1.9 Kg |
Option
- KB30 keyboard: positioned in the tray underneath the printer and connected via extensible USB cable
