TICKET VALIDATING MACHINE FOR ATB TICKETS WITH CCD BARCODE READER

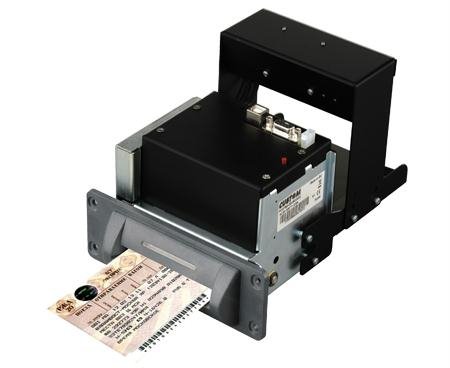

OTB3 is an ATB ticket validation/voiding machine using thermal paper. Using the front bezel with LED illumination, you can insert a ticket which will be automatically validated through 1D or 2D barcode reading. The validation or voiding message will be printed using an 82.5mm thermal print head, and the ticket will be returned to the user.
HIGHLIGHTS
- Illuminated plastic bezel for ATB ticket insertion
- Paper insertion sensors to detect ticket input by the user and ticket positioning;
- Motorized ticket conveyor
- 1D CCD or 2D bi-dimensional barcode reader (optional)
- Management of ticket validation printout
- T200 DPI thermal head
- Printing speed: 200 m/sec
- Ticket weight (in grams): from 80 to 350 g/m²
- Heavy-duty applications
- 24 Volt power supply
- MTBF up to 36,0000 hours
- RS232/ USB interface
